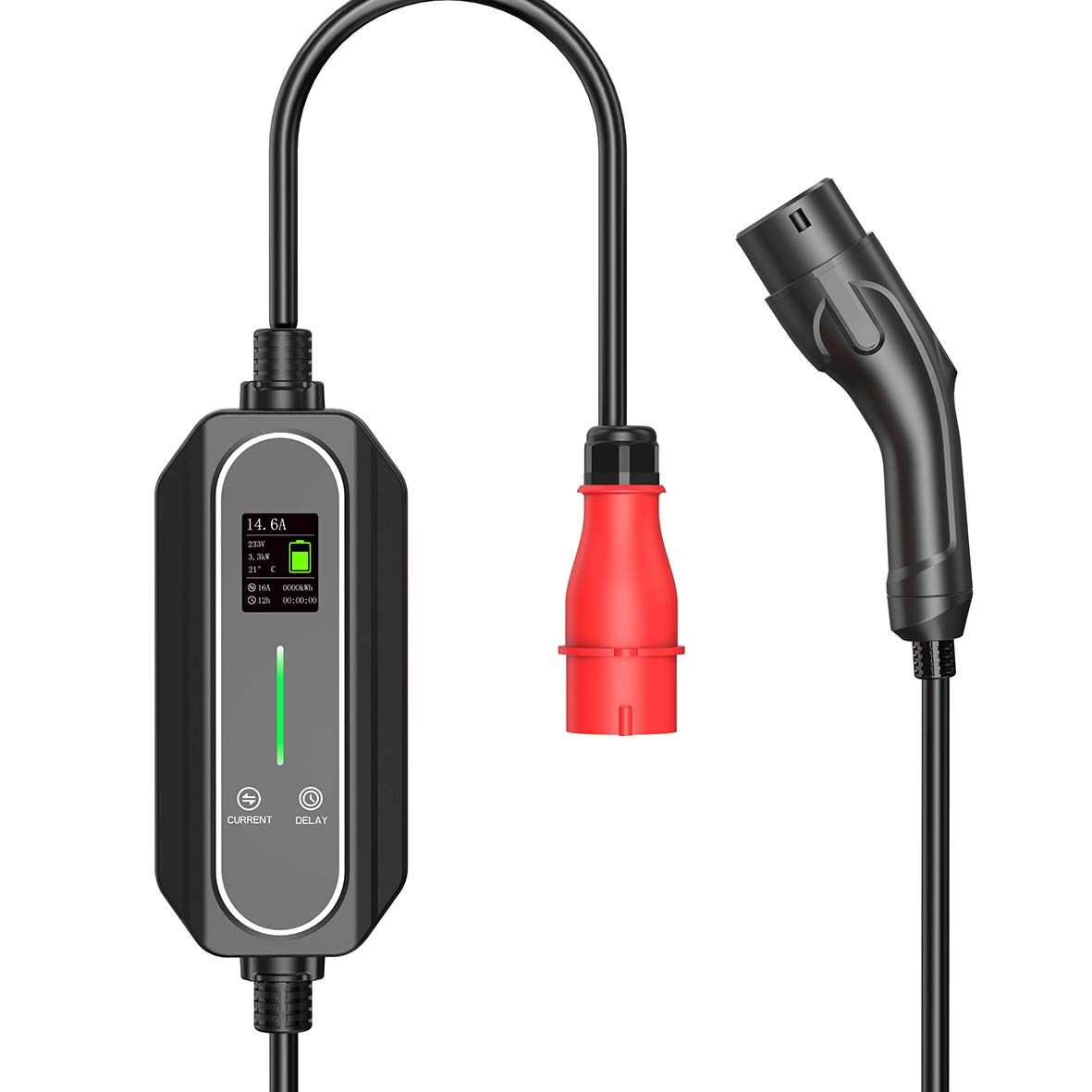

11KW 22KW Type 2 3-phase Portable EV Charger with LCD Screen

Brief Introduction

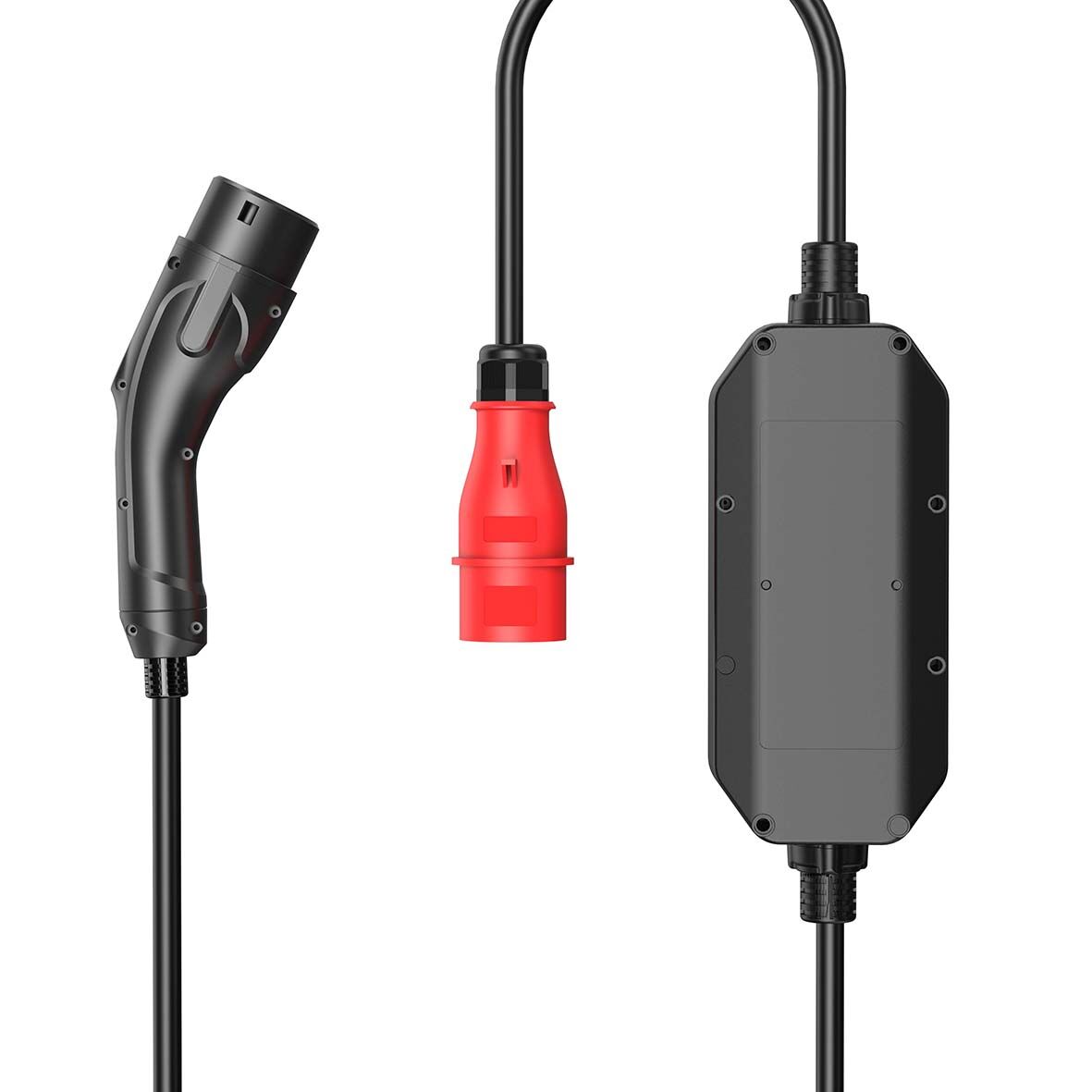

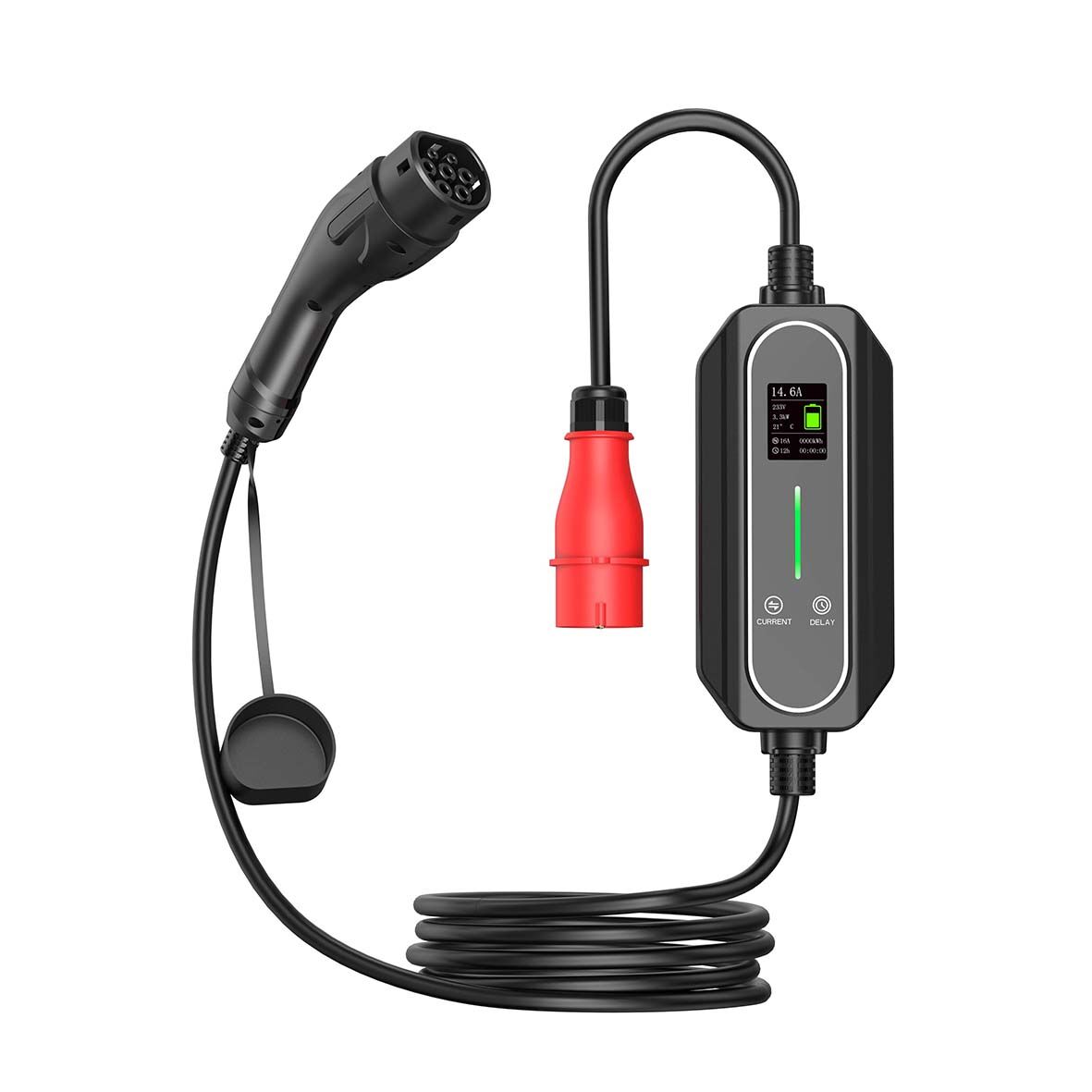

This portable electric car charger, equipped with a Type 2 plug, offers versatile charging capabilities with a power range spanning from 3 kW to 22 kW. The distinctive red CEE plug ensures secure connectivity. For added convenience, the charger accommodates both one-phase and three-phase electricity with the use of a compatible adapter.

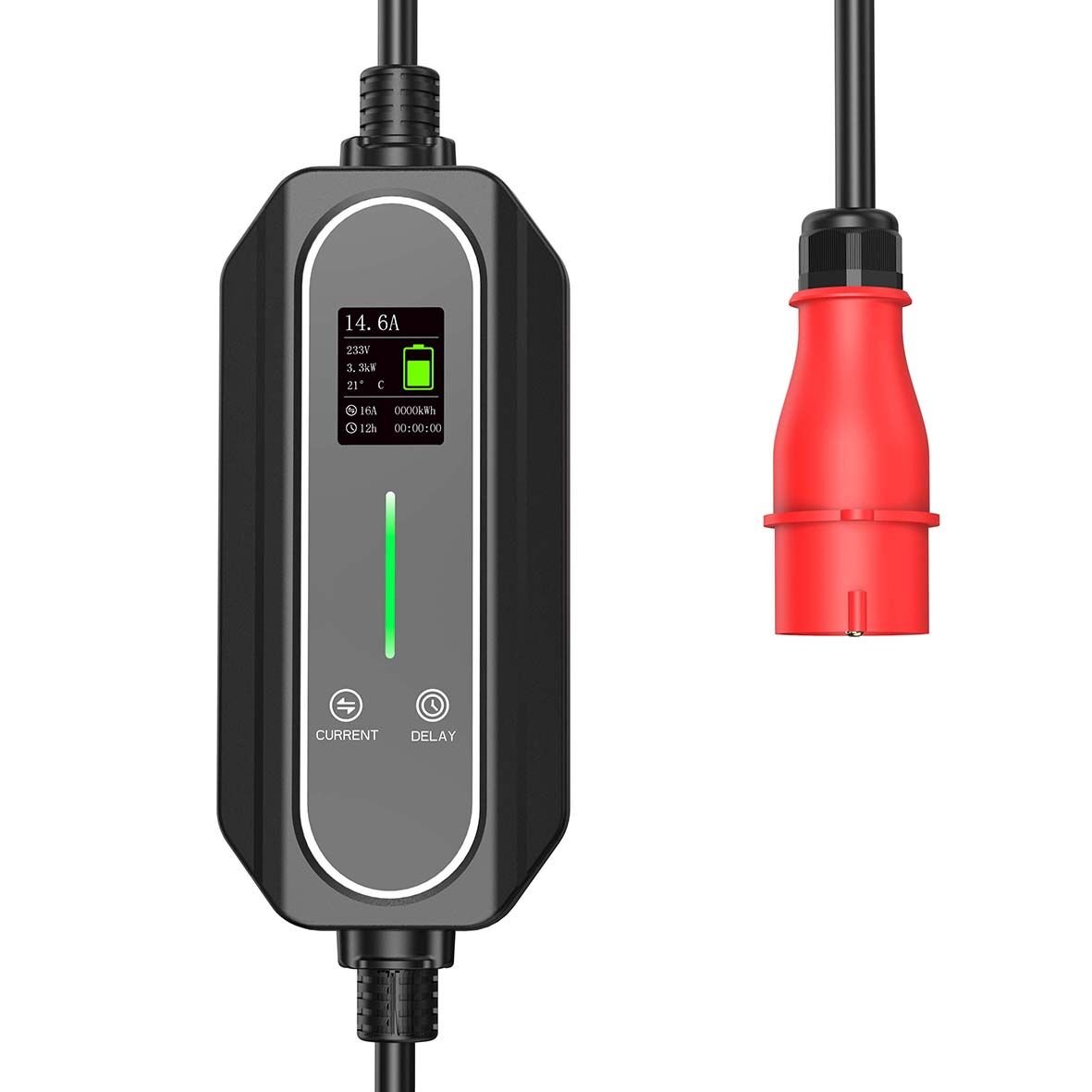

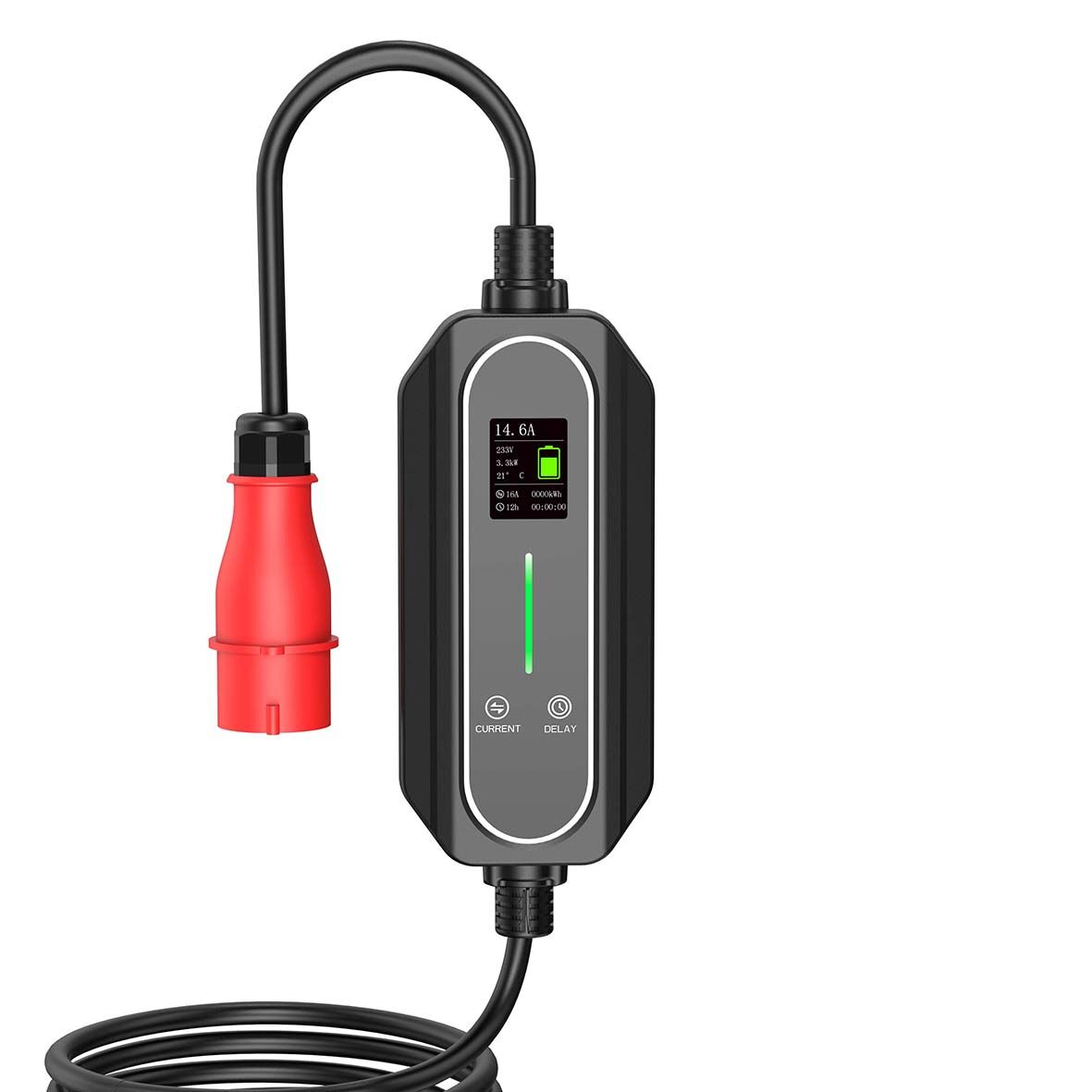

Featuring a controller box with an LCD screen, users have real-time visibility into power, current, and temperature metrics. The LCD display is complemented by four LED lights that serve as intuitive indicators for monitoring the charging status. A comprehensive user manual is available upon request, providing detailed guidance on usage.

The user-friendly interface includes two buttons on the display: one for adjusting the current within the range of 6-16A or 10-32A, and the other for scheduling charging sessions. Users can set charging to commence up to 12 hours later, utilizing the ‘delay’ button to strategically avoid peak charging hours. This charger is designed for efficiency and user control, offering a seamless and customizable charging experience for electric vehicle owners.


Additional information

Application Standard

IEC 62196-2



Rated Current

10-32A, 6-16A

Rated Voltage

210-250V/ 380-480V

Withstand Impact

Dropping from 1m height and running-over by a 2 ton vehicle

Working Temperature

-40℃ 〰 +105℃

Plug Case Material

Thermoplastic (flame retardant grade: UL 94 V-0



Cable Length


Power Plug

5-pin red CEE

Charging Power

Up to 22KW

Our Services

Customer Service
1. We will check and reply to your inquiries or emails in 24 hours during working days.
2. You will get a designated person for our business cooperation.
3. We provide our customers with professional advice on both products and purchase options.

Delivery Time
1. Samples and test orders can be prepared and set out within 5-7 working days.
2. Orders of standard products no more than 500pcs can be prepared and sent out in 7-15 working days.
3. Orders of customized products will be produced within 14-30 working days.

Customized Service
1. We provide flexible customized services with our rich OEM and ODM experiences.
2. For OEM, cable color, cable length, logo, packaging, etc. can be customized.
3. For ODM, we provide product appearance design, function setting, new product development, etc.
Note: MOQ of customization depends on different customized requests.

After-sale Service
1. We provide 2-year warranty for all our products. To be specific, in our after-sale plan, we either provide free replacements or charge a certain maintenance cost depending on the situation.
2. However, we seldom have after-sale problems because of our strict product inspections before delivery. And all of our products are CE, TUV or UL certificated. We treasure customers’ trust. Providing guaranteed products is always one of our greatest strengths.
