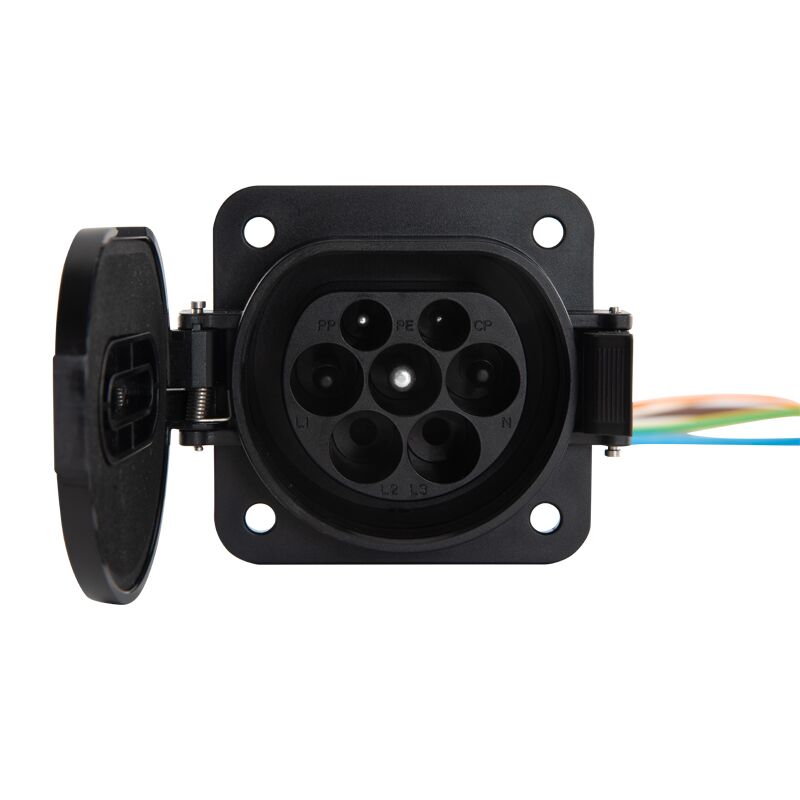

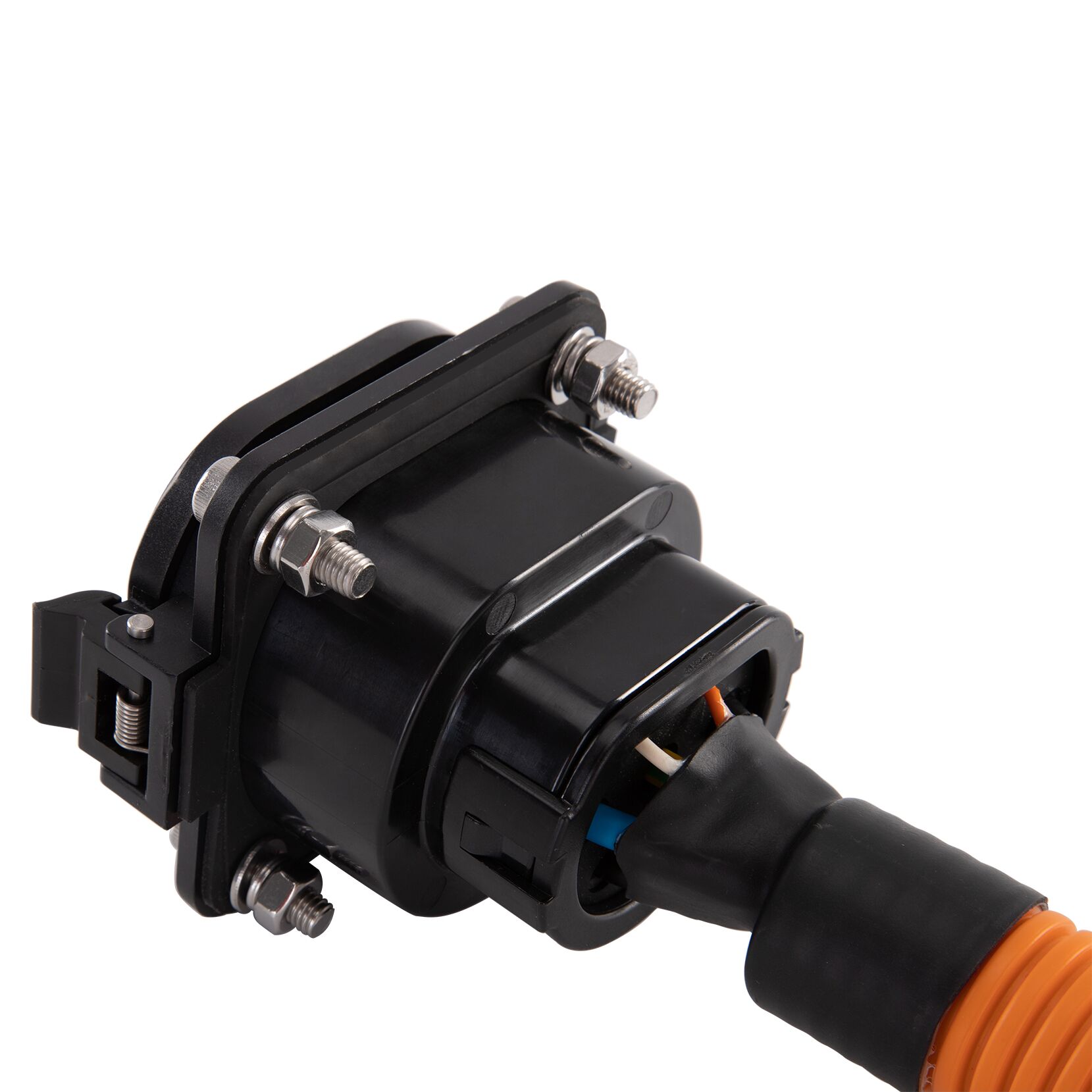

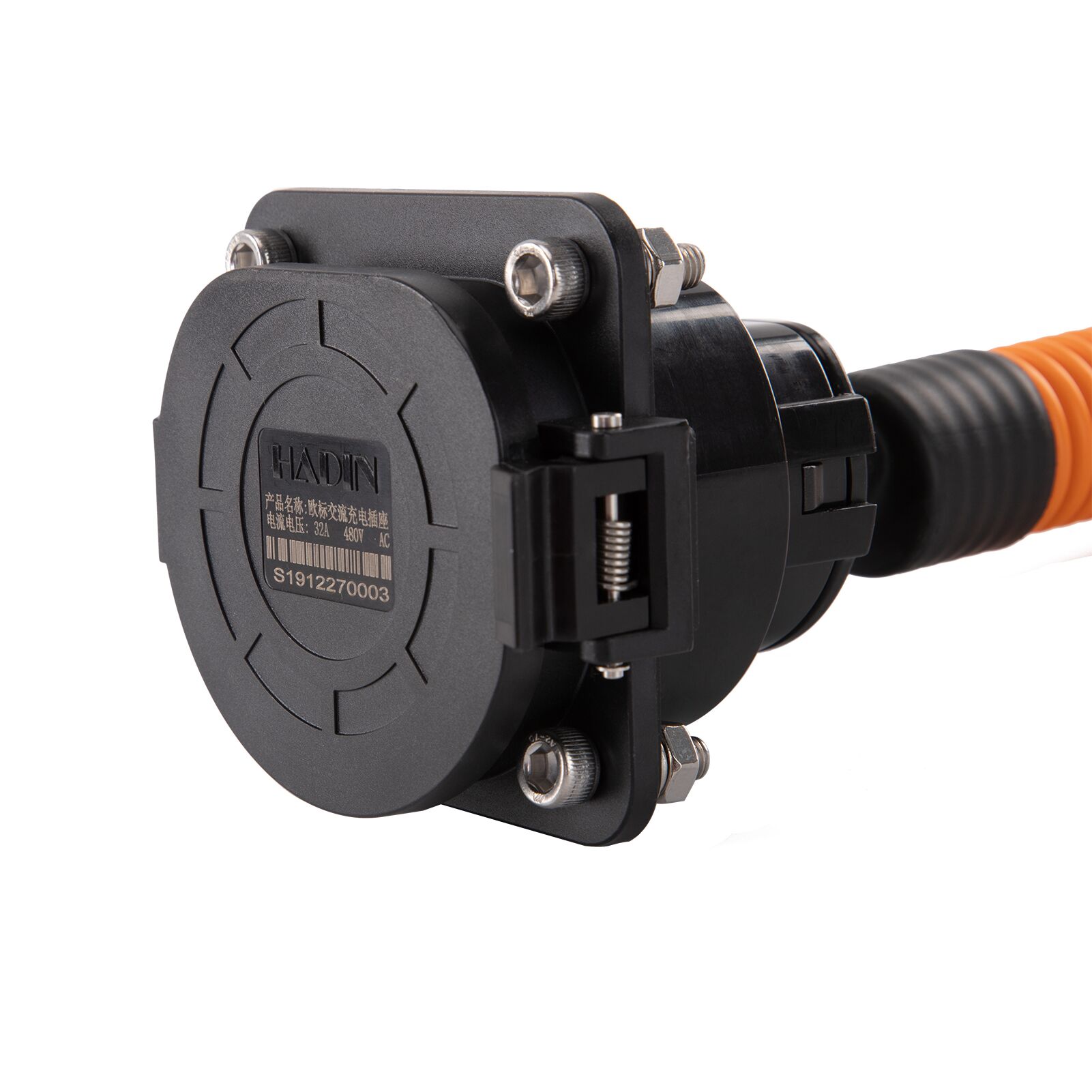

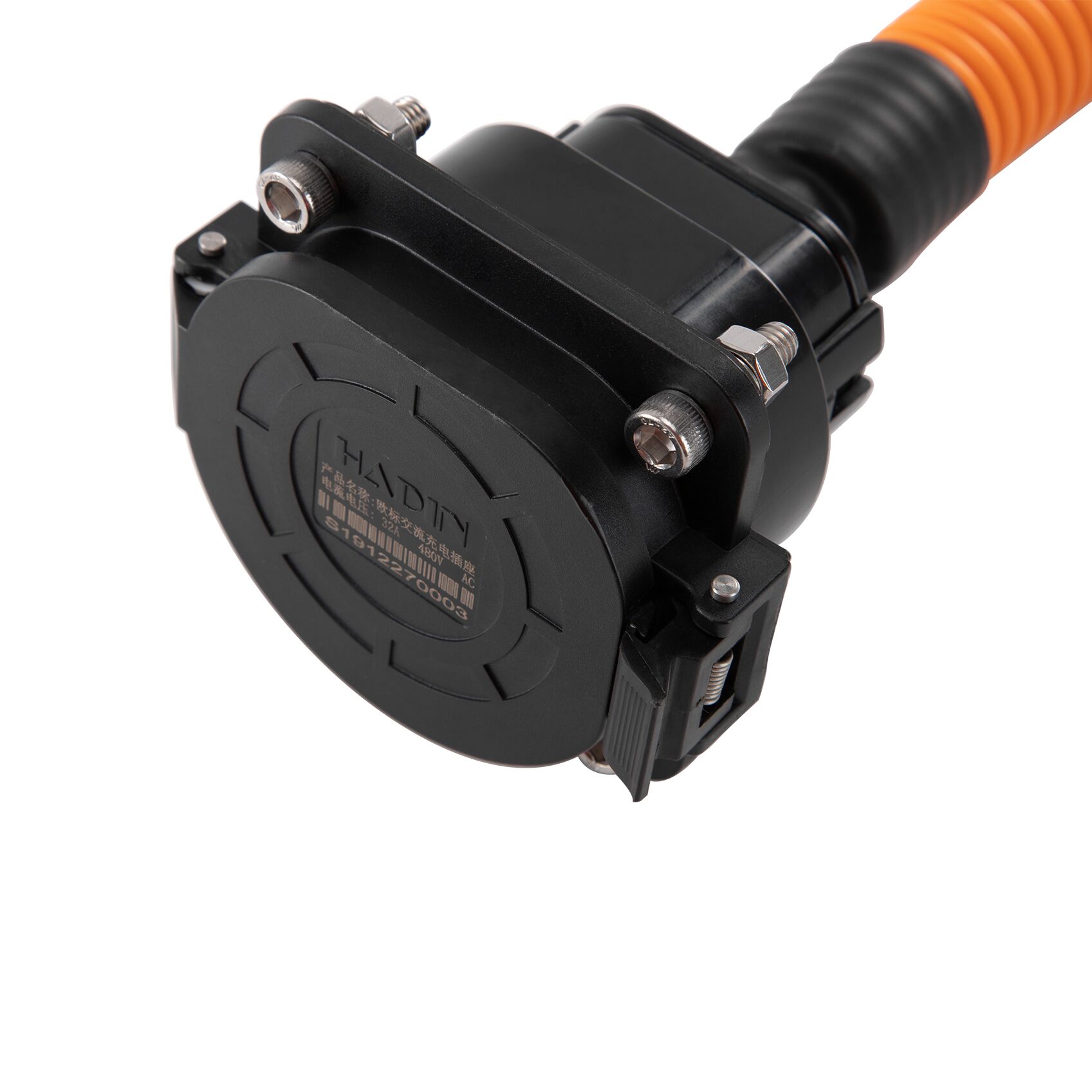

Type 2 EV inlet socket

IEC 62196-2 Type 2 Male EV Socket for AC Charging

The standardized Type 2 ev socket inlet is designed for single- and three-phase AC charging. It is used for charging electric vehicles, mainly within Europe. It is also used in some countries outside of Europe, including Australia, New Zealand and India.

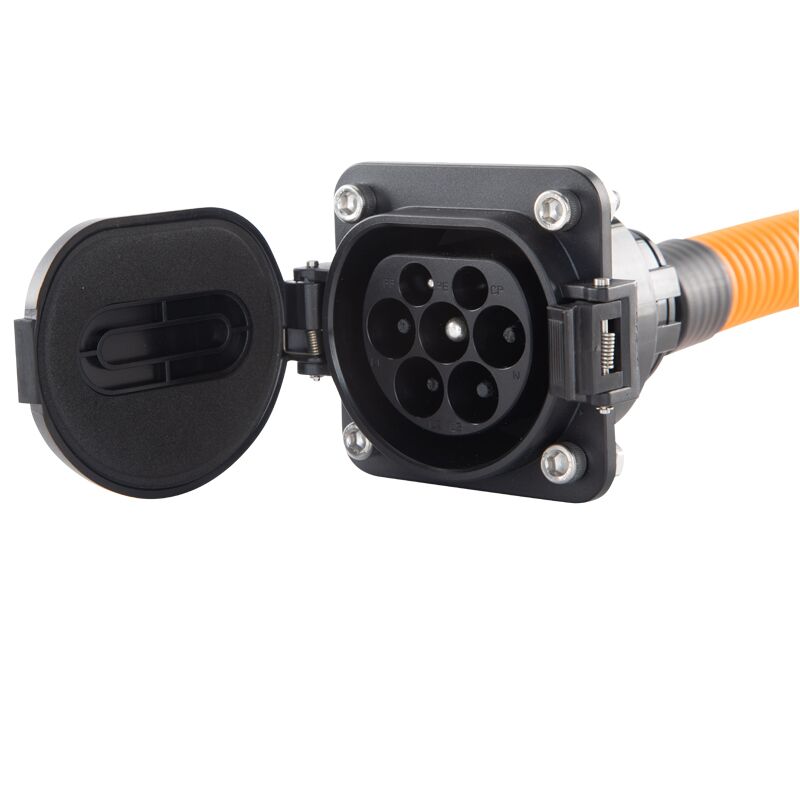

The connector is circular in shape and is designed to work with a Type 2 female plug. A lock can be added upon request. When inserted into the vehicle inlet, the female plug is held in place by the locking mechanism. The same concept is used by the socket-outlet in EVSEs to hold the plug in place.

Category: Tags: , , , ,

Additional information

Application Standard

IEC 62196-2
Rated Current

16A/ 32A, 1 Phase / 3 Phases
Rated Voltage

210-250V/ 380-480V
Insulation Resistance

＞2000MΩ
Terminal Temperature Rise

＜50K
Withstand Voltage

3200V
Contact Resistance

0.5MΩ
Mechanical Life

＞10000 times of plug in/ off
Coupled Insertion Force

＜75N
Withstand Impact

Dropping from 1m height and running-over by a 2 ton vehicle
Working Temperature

-40℃〰+105℃
Protection Class

IP55
Case Material

Thermoplastic (flame retardant greade: UL94 V-0)
Terminal

Copper alloy, silver plating
Cable Material

TPE or TPU
Cable Length

Customizable
OEM/ ODM

Yes
