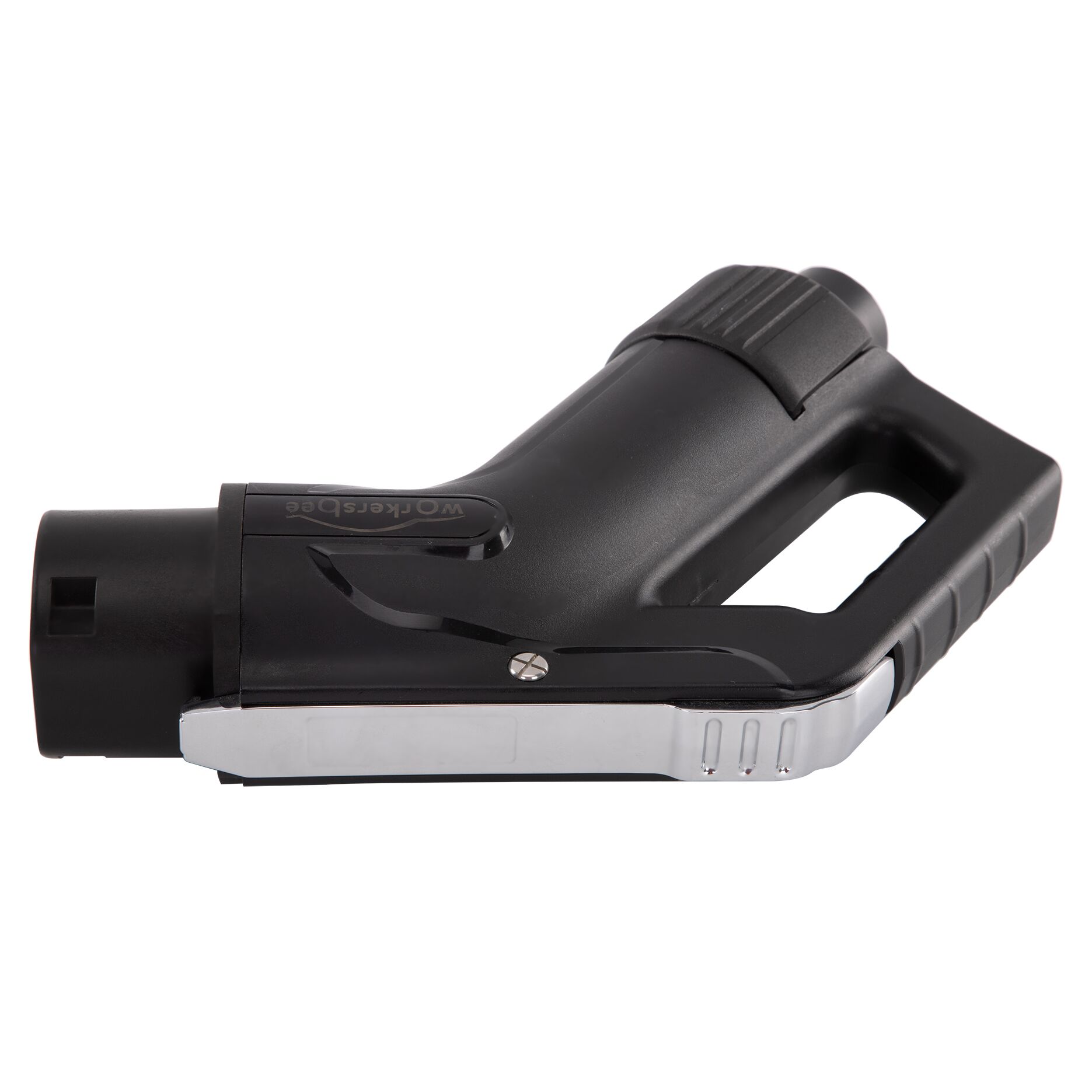

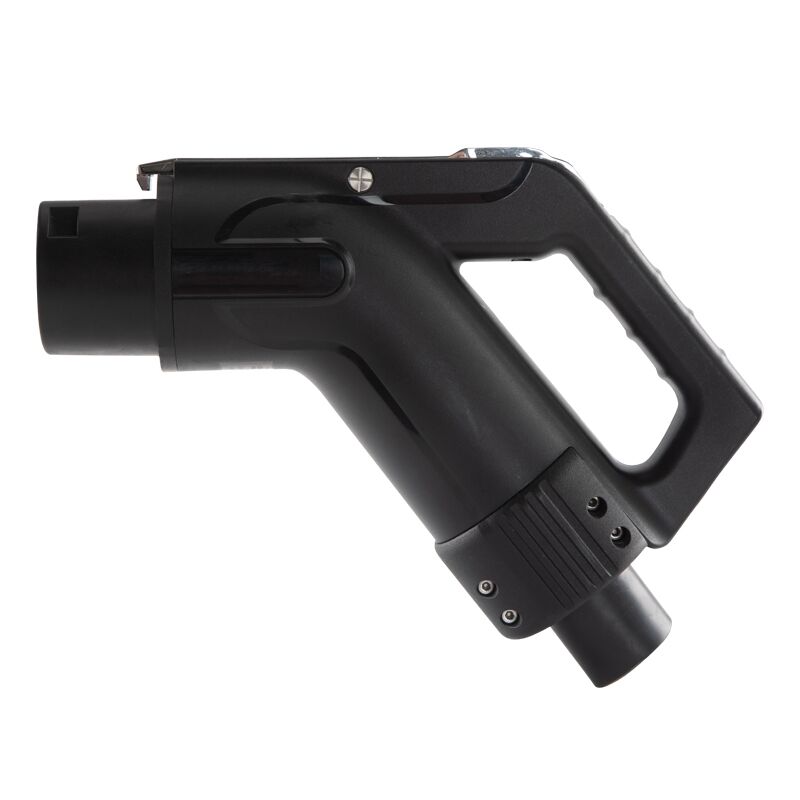

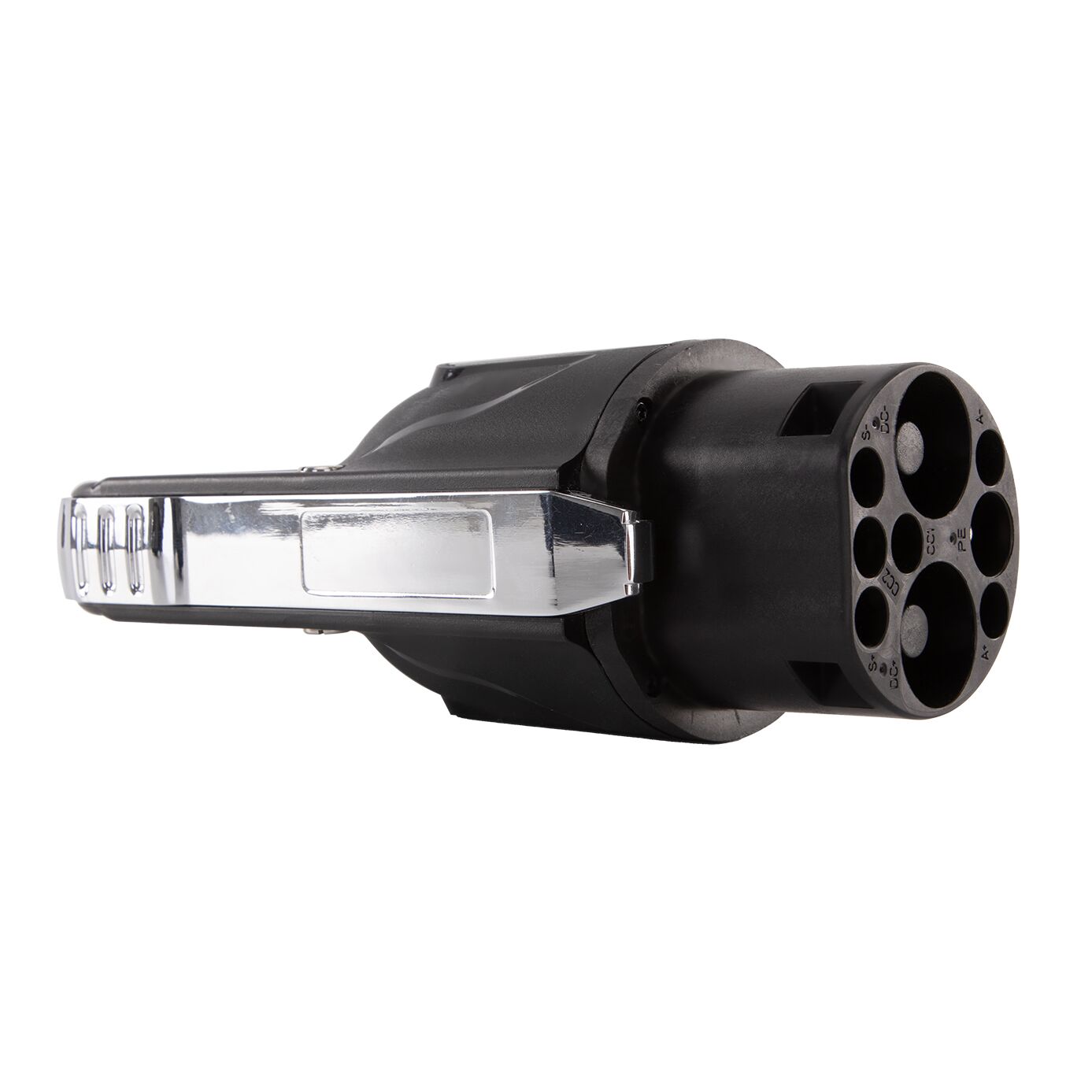

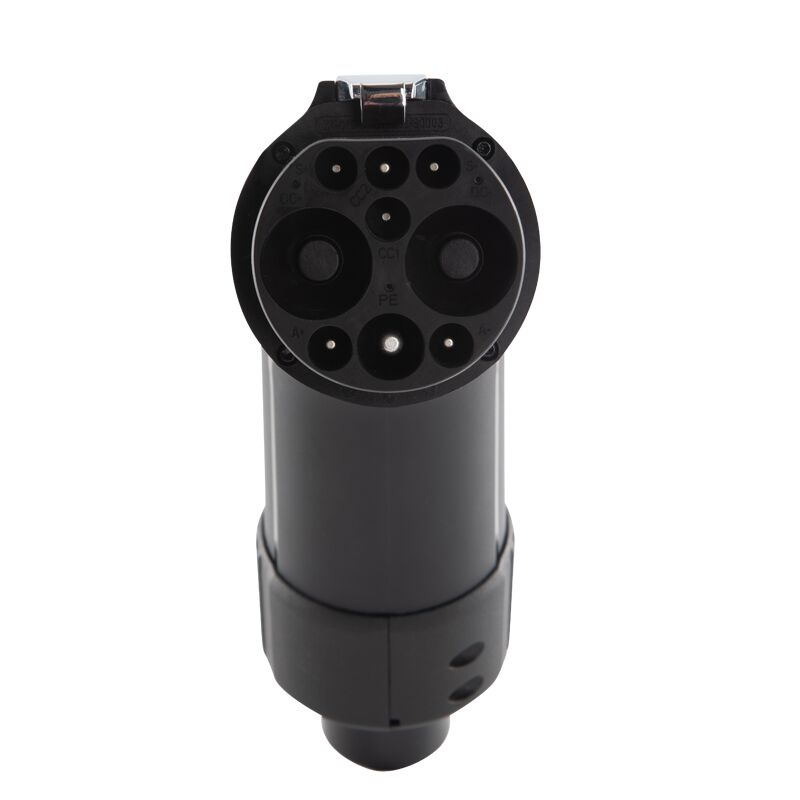

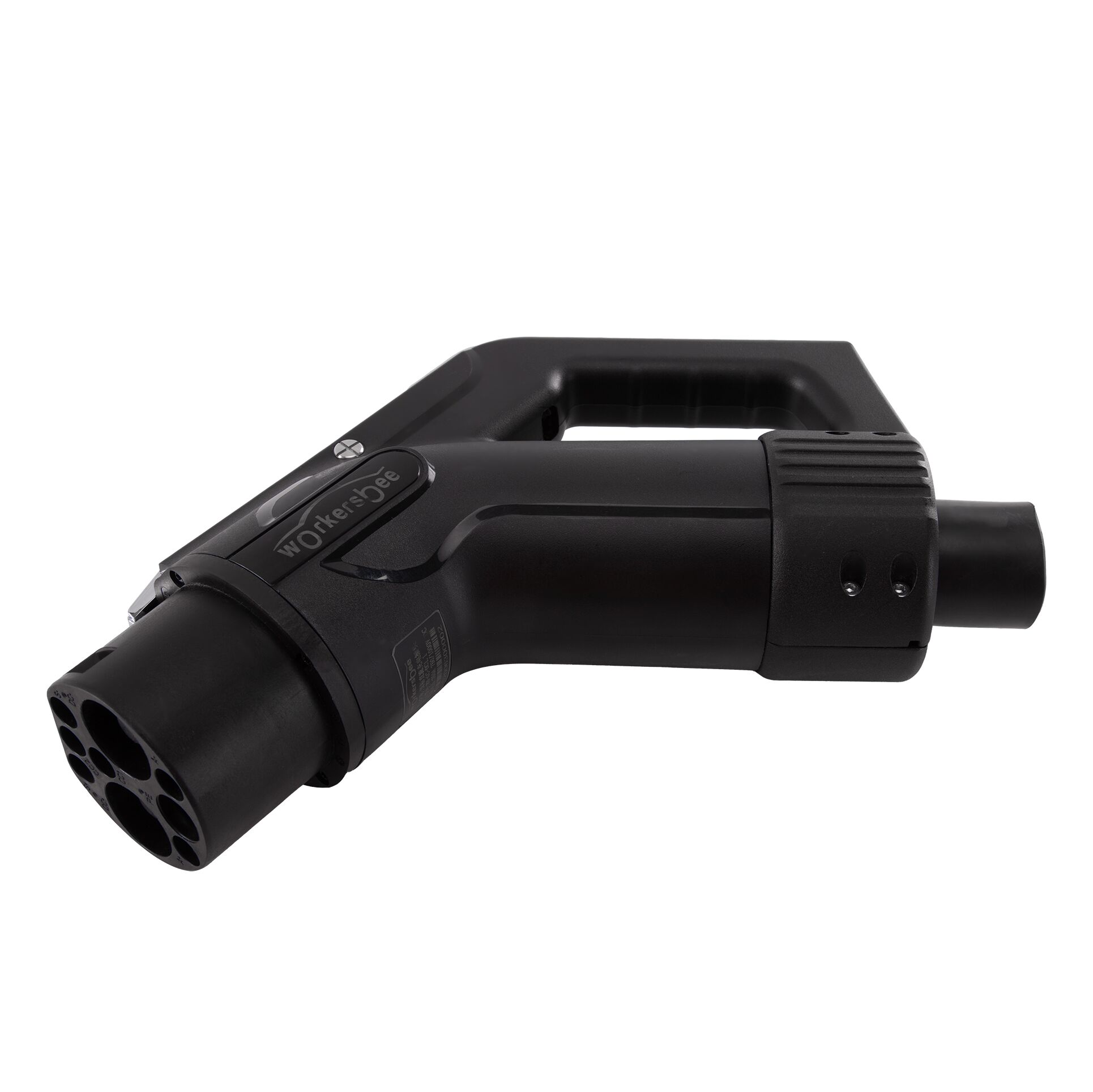

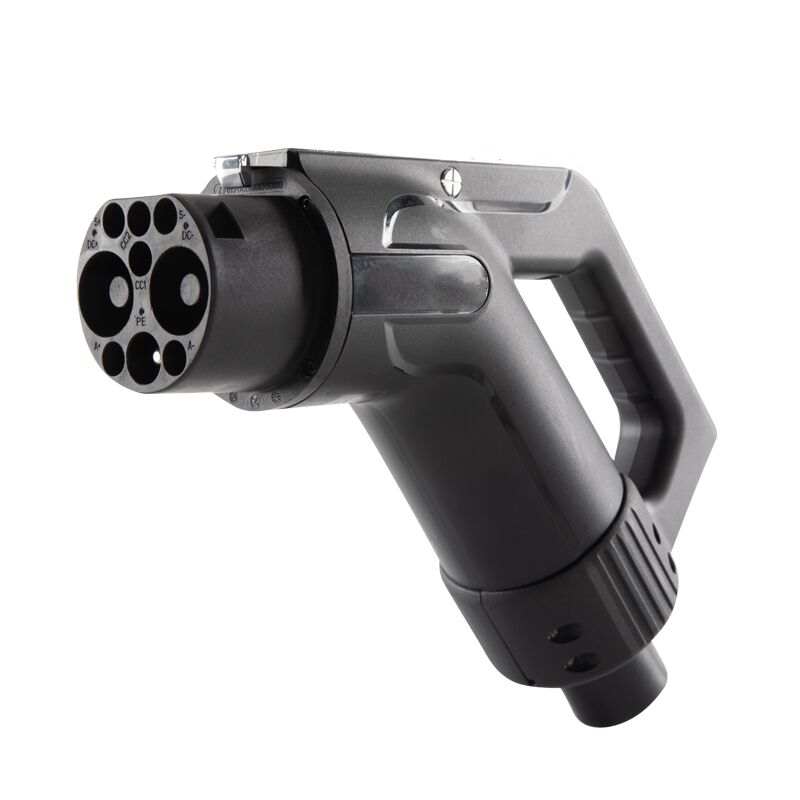

This is a GB/T DC charging plug for charging of Chinese electric cars. It is also called guobiao DC EV charging plug. It can charge an electric car up to optional max. 250 ampère. The connector also includes communication pins.
Different from Type 1, Type 2, CCS 1 or CCS 2 charging plugs, the GB/T plugs are male on the EVSE and female on the EV. Unlike CCS 1 or CCS 2 EV sockets, two separate AC and DC inlets are required in the vehicle because AC and DC charging connectors have different mating faces.
The GB/T 20234 charging standard is mainly used in China. But nowadays, more and more Chinese electric cars are exported, GB/T charging cables and GB/T EVSEs are used outside of China. Therefore, there is an increasing demand of this plug in Southeast Asia and East Europe as well as middle East.
| Application Standard | GB/T |
|---|---|
| Certification | Others |
| Rated Current | 80A/ 125A/ 150A/ 200A/ 250A |
| Rated Voltage | 600V/ 750V/ 1000V |
| Withstand Voltage | 3200V |
| Insulation Resistance | ＞2000MΩ |
| Working Temperature | -40℃ 〰 +105℃ |
| Terminal Temperature Rise | ＜50K |
| Coupled Insertion Force | ＜75N |
| Mechanical Life | 10000 times of plug in/ off |
| Withstand Impact | Dropping from 1m height and running-over by a 2 ton vehicle |
| Protection Class | IP 54 |
| Plug Case Material | Thermoplastic (flame retardant grade: UL 94 V-0 |
| Terminal Material | Copper alloy with silver plating |
| Cable Material | TPE or TPU |
| Cable Length | Customizable |
| OEM/ ODM | Yes |
Customer Service
1. We will check and reply to your inquiries or emails in 24 hours during working days.
2. You will get a designated person for our business cooperation.
3. We provide our customers with professional advice on both products and purchase options.
Delivery Time
1. Samples and test orders can be prepared and set out within 5-7 working days.
2. Orders of standard products no more than 500pcs can be prepared and sent out in 7-15 working days.
3. Orders of customized products will be produced within 14-30 working days.
Customized Service
1. We provide flexible customized services with our rich OEM and ODM experiences.
2. For OEM, cable color, cable length, logo, packaging, etc. can be customized.
3. For ODM, we provide product appearance design, function setting, new product development, etc.
Note: MOQ of customization depends on different customized requests.
After-sale Service
1. We provide 2-year warranty for all our products. To be specific, in our after-sale plan, we either provide free replacements or charge a certain maintenance cost depending on the situation.
2. However, we seldom have after-sale problems because of our strict product inspections before delivery. And all of our products are CE, TUV or UL certificated. We treasure customers’ trust. Providing guaranteed products is always one of our greatest strengths.
