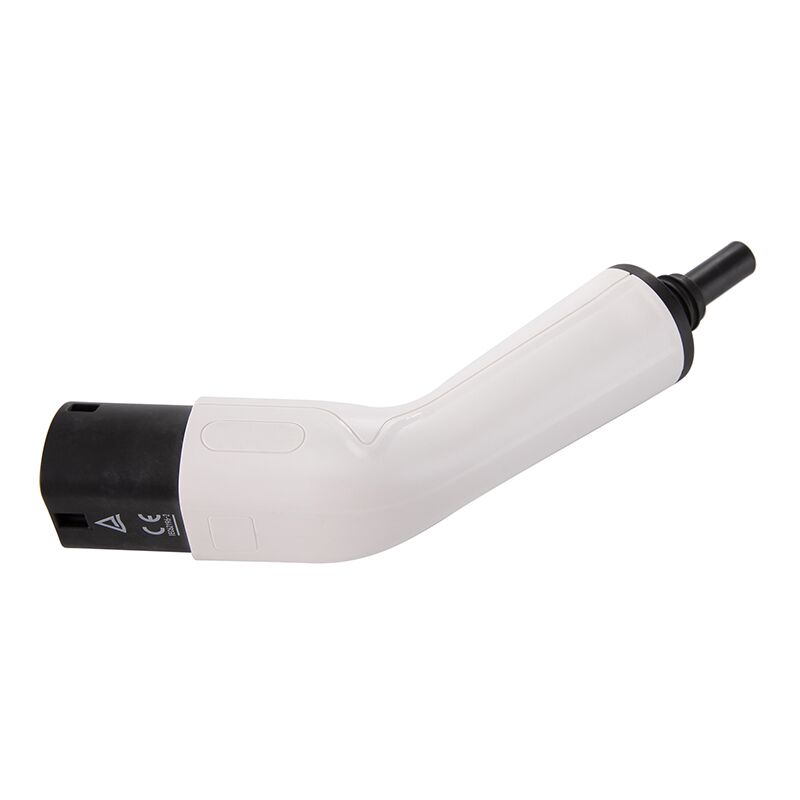

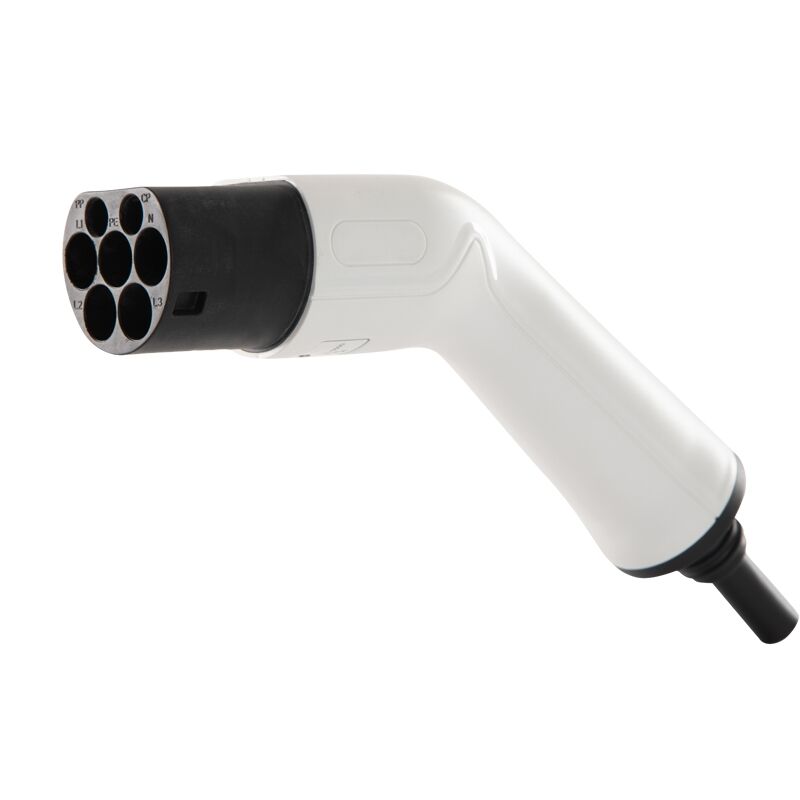

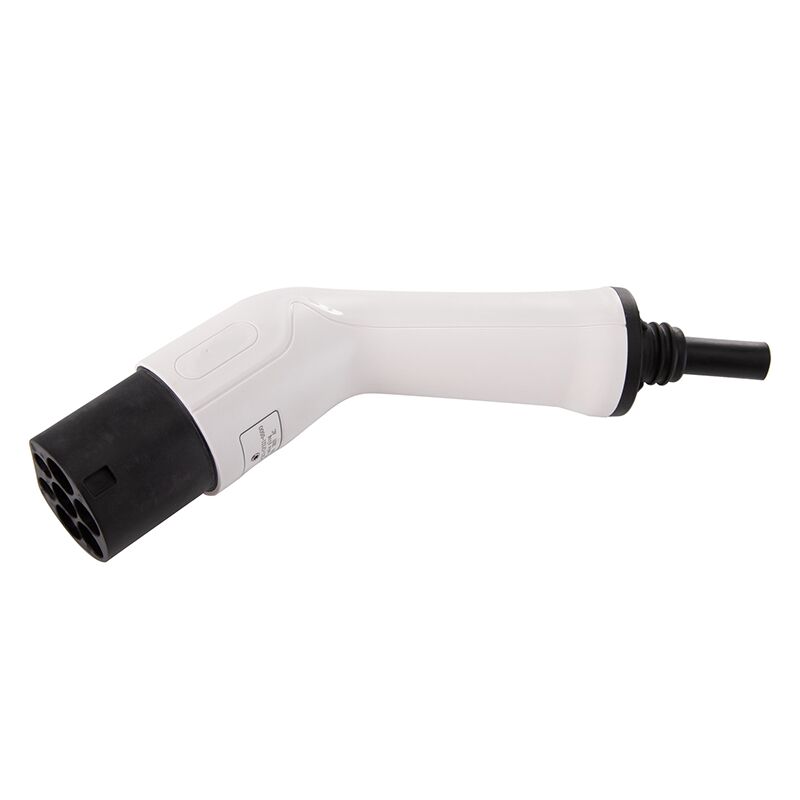

This IEC 62196 Type 2 male plug is the conventional connector for AC EV charging in Europe. Single- or three-phase AC charging is carried out in charging mode 3 with the standardized Type 2 charging connectors. Both PP and CP signal contacts are included for safety control. If it’s three-phase current, all 7 pins will be used; if it’s only single phase, only 5 pins will be used.
Main features
| Application Standard | IEC 62196-2 |
|---|---|
| Certification | CE/ TUV (going through UL certification) |
| Rated Current | 16A/ 32A, 1 Phase/ 3 Phases |
| Rated Voltage | 210-250V/ 380-480V |
| Withstand Voltage | 2000V |
| Insulation Resistance | ＞2000MΩ |
| Coupled Insertion Force | ＜75N |
| Mechanical Life | 10000 times of plug in/ off |
| Protection Class | IP 54 |
| Terminal Temperature Rise | ＜50K |
| Working Temperature | -40℃ 〰 +105℃ |
| Withstand Impact | Dropping from 1m height and running-over by a 2 ton vehicle |
| Plug Case Material | Thermoplastic (flame retardant grade: UL 94 V-0 |
| Terminal Material | Copper alloy with silver plating |
| Cable Material | TPE or TPU |
| Cable Length | Customizable |
| OEM/ ODM | Yes |
Customer Service
1. We will check and reply to your inquiries or emails in 24 hours during working days.
2. You will get a designated person for our business cooperation.
3. We provide our customers with professional advice on both products and purchase options.
Delivery Time
1. Samples and test orders can be prepared and set out within 5-7 working days.
2. Orders of standard products no more than 500pcs can be prepared and sent out in 7-15 working days.
3. Orders of customized products will be produced within 14-30 working days.
Customized Service
1. We provide flexible customized services with our rich OEM and ODM experiences.
2. For OEM, cable color, cable length, logo, packaging, etc. can be customized.
3. For ODM, we provide product appearance design, function setting, new product development, etc.
Note: MOQ of customization depends on different customized requests.
After-sale Service
1. We provide 2-year warranty for all our products. To be specific, in our after-sale plan, we either provide free replacements or charge a certain maintenance cost depending on the situation.
2. However, we seldom have after-sale problems because of our strict product inspections before delivery. And all of our products are CE, TUV or UL certificated. We treasure customers’ trust. Providing guaranteed products is always one of our greatest strengths.
China’s First 7-Day Delivery EV Charging Products’ Supplier.
